MI Stainless Steel Sheathed K/N/E/J/T Type Thermocouple Heat Tracing Cable Mi Cable
LEADKIN MI Cable Advantage
Mechanically Strong:
The cable also withstands considerable abuse such as bending, flattening and twisting, without electrical failure. It is also resistant to rodent attack.
Non-Ageing: MICC MI cable is permanent and will not degrade with age as its sheath, conductors and insulation are for all practical purpose indestructible and completely stable. Hence the cable can be removed and re-used many years after initial installation, with subsequent savings in re-wiring cost.
High Corrosion Resistance: MICC MI cable, with its copper sheath, has a resistance to corrosion and for all normal environments need no additional protection. Where it may be exposed to chemicals specifically corrosive to copper, cables with an LSF protective outer covering are available.
Waterproof: MICC MI Cable has a metal sheath which is impervious to water and gas.
Excellent Earth Continuity: The copper sheath eliminates the need for a separate circuit protective conductor. The excellent low resistance copper sheath conforms to the requirements of the IEE wiring Regulations (BS7671).
Radiation Resistance:
MICC MI Cables are eminently suitable for installation in nuclear radiation environments because of their inorganic construction.
Quick Details:
Name:99.6% high purity Mgo insulator K type thermocouple cable MI cable
Type: K,N,E,J,T,R,B,S
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4
Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell
Dia(mm): 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Making sample time: all type in stock
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II |
| Accuracy | Temp.Range | Accuracy | Temp.Range |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |
Product Pictures
Company Information:
A. Main Products

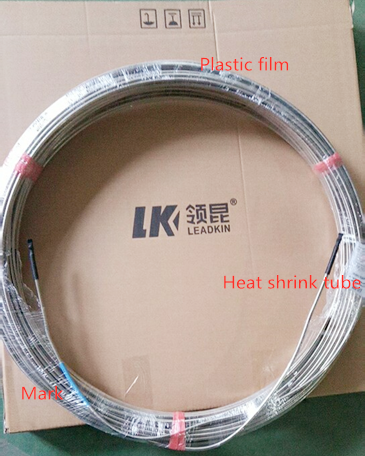

B. Package
We add heat shrink tubing and plastic film to make sure high insulated resistance.
Except marking notes, we also have pass card and test report for every coil cable.
C. Warehouse
We have great amount mi cable in stock. We expecting your visiting.
FAQ:
| 1. Accurate quotation. |
| 2. Confirm the price, trade term, lead time, payment term etc. |
| 3. LEADKIN sales send the Proforma Invoice with LEADKIN seal. |
| 4. Customer arranges the payment for deposit and sends us bank slip. |
| 5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
| 6. End Production-Mass production products photos. |
| 7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients. |
| 8. The order is finished perfectly when you receive the goods and get satisfied with them . |
| 9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better . |
